Incinerators

Incinerators

Three-chamber design of Atlas Incinerators ensure complete combustion of loaded waste.
Extra combustion air is injected into the after-burning chambers, ensuring destruction of all unburned particles.

Incinerator overview picture with sludge treatment tank and diesel oil tank:
01 - Diesel Oil Tank
02 - Ash Cleaning Door
03 - Hot Loading Sluice
04 - Air Blower
05 - Primary Oil Burner
06 - Secondary Oil Burner
07 - Control Panel
08 - Sludge Dosing Pump
09 - Self-Cleaning Strainer
10 - Circulation Pump
11 - Mill Pump
12 - Oil Sludge Mixing Tank

We are offering six different sizes of incinerator depending on owner request for necessary waste capacity with following characteristics:

Type200 S WS
200 SL
200 SL WS
600 S WS
600 SL P
600 SL WS P
800 S WS
800 SL P
800 SL WS P
1200 S WS
1200 SL P
1200 SL WS P
1500 LP
1500 SL XL WS P
2400 LP
2400 SL XL WS P
Capacity (kW) 209 581 814 1163 1500 2325
Combustion Capacity - Solid waste (kg/h) 40 100 100 230 230 230
Combustion Capacity - Sludge oil (l/h) (at 20% water content) 24 66 95 135 170 263
Weight approx. (kg)   4600 5500 6100 8200 11200

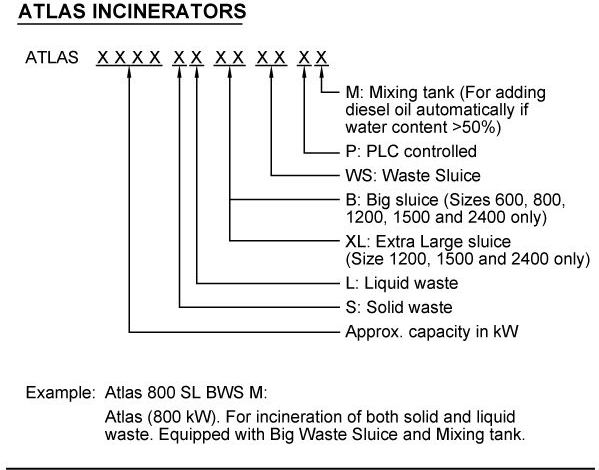

Interpretation of Atlas Incinerators abbreviation:
